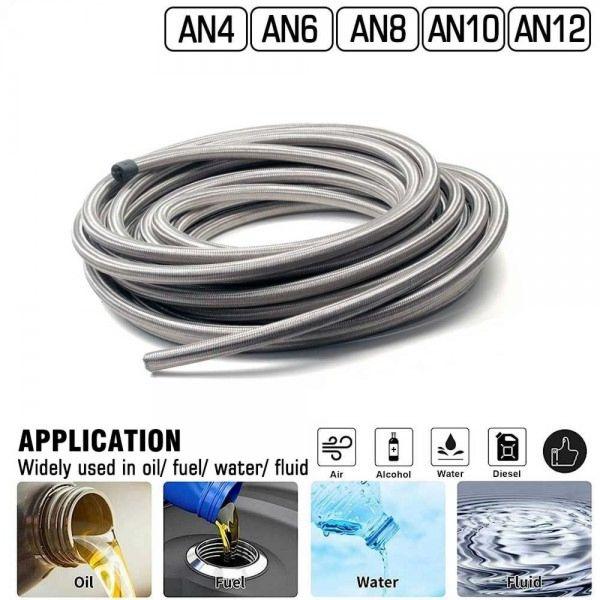

AN4 Stainless Steel Braided Hose - 5.6mm ID

High quality AN4 stainless steel braided fuel hose. This hose is ideal for high temperature, high pressure, and offers wide range of fluid compatibility.

Made of high-quality NBR material on the inside that gives them high chemical and heat resistance, along with a braided stainless steel outside which gives them high durability and pressure resistance.

Professional and high-tech design, can be used under continuous flexing and vibration conditions.

Easy to install, the smooth bore provides optimal flow during operation.

Specifications:

Material: 304 Stainless Steel Wires & NBR

Color: Silver

Working Temperature: -40℃ to +100℃

Working Pressure: 7Mpa/1015psi

Burst Pressure: 42Mpa/6000psi

*AN4 inner diameter =5.6mm; outer diameter = 11MM (Approx.)

Application: Fuel, lube, alcohol, ethanol, coolant and air for automobiles or marine engines, most suitable for racing cars & motor racing bikes.
